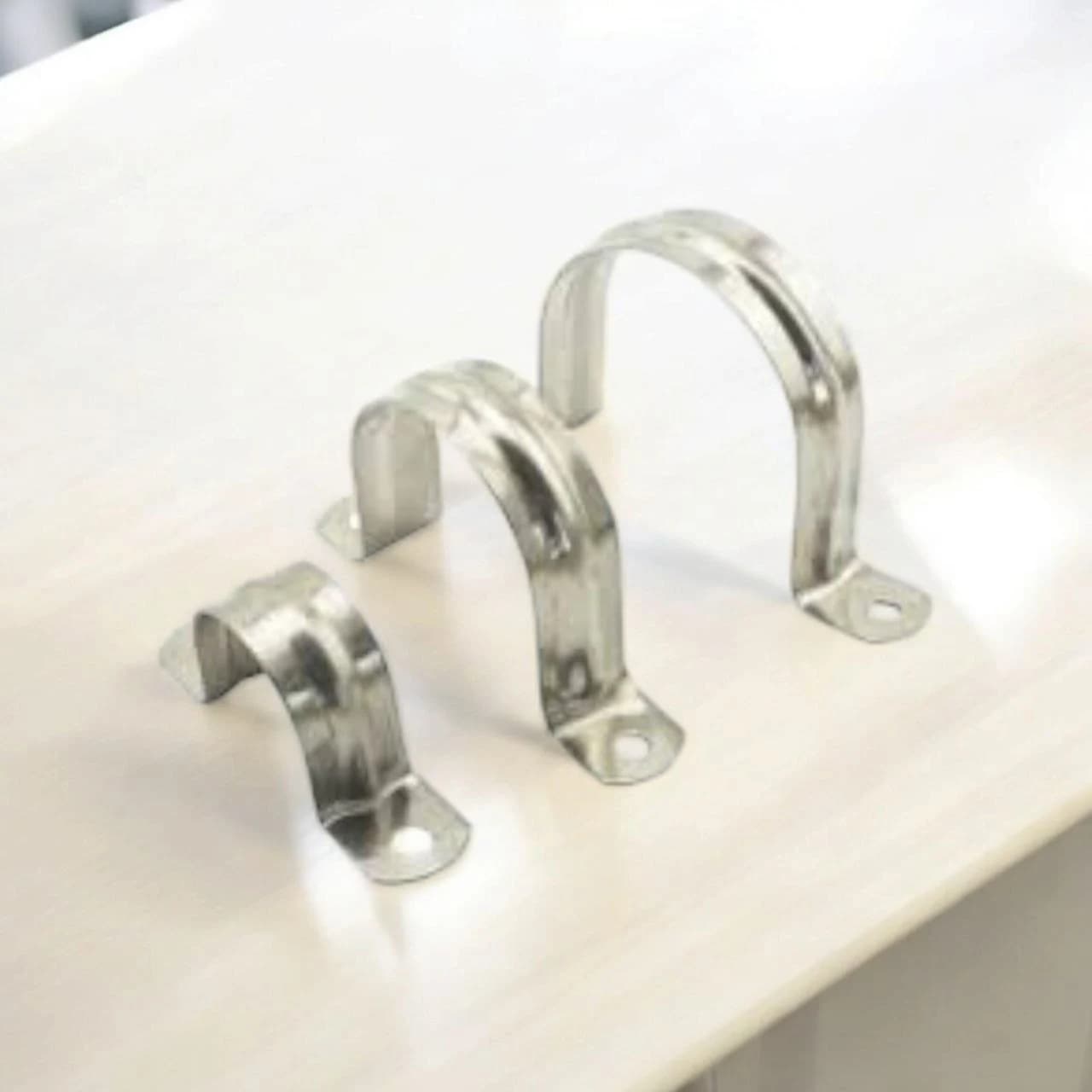

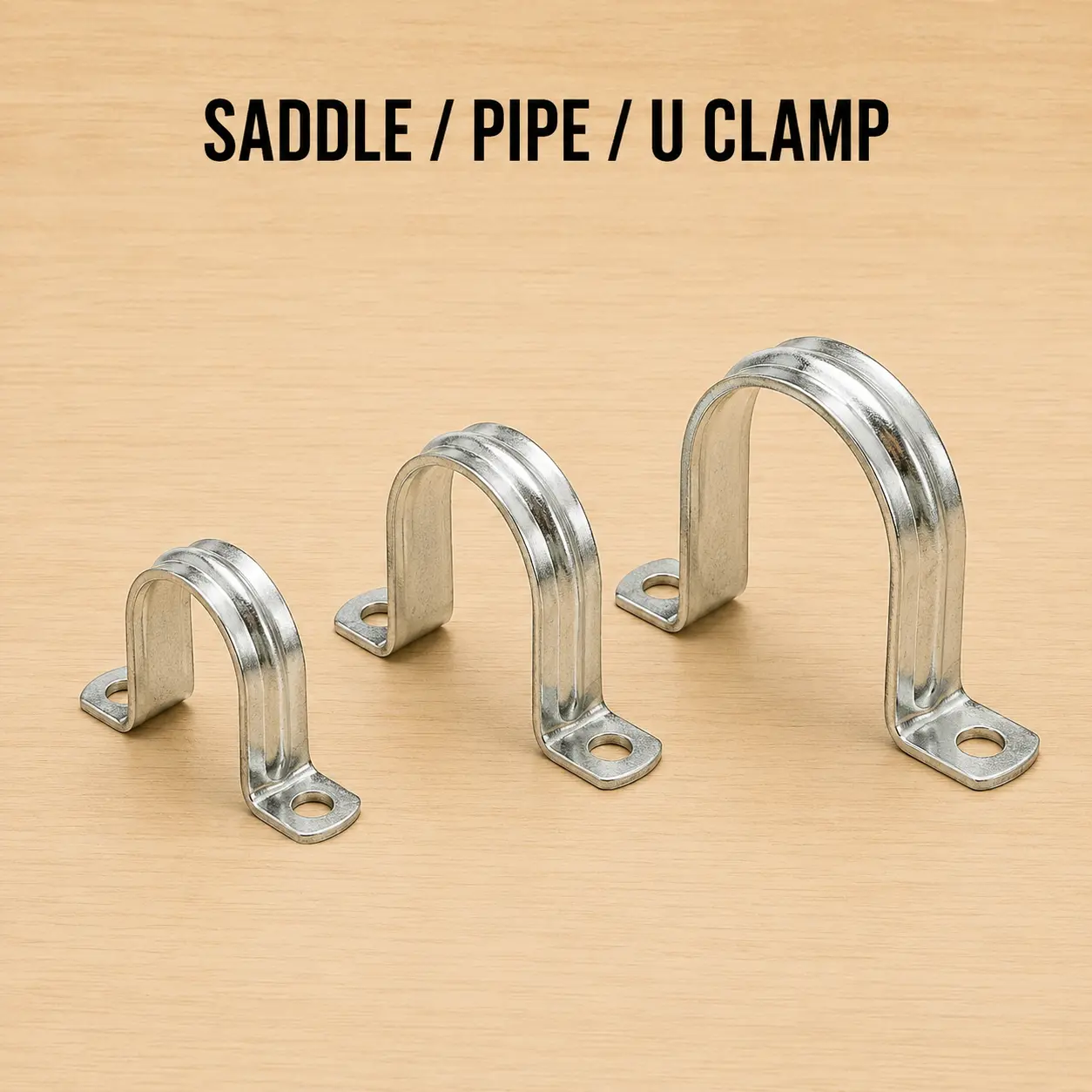

Heavy Duty GI Pipe Clamp & Saddle U Clamp Manufacturer Mumbai | OEM Supply Vasai Phata
Unit I Vasai Phata manufactures premium stamped sheet metal components. Engineered with springback compensation, progressive die capabilities, and finished in our automated 7-tank powder-coating facility.
Component USP Summary
Springback-compensated stamping dies deliver true circumferential arc alignment within ±0.3mm of nominal pipe outer diameter. Complete wall contact prevents flange failure under heavy wind or dynamic fluid loads.
What Is an Industrial Pipe Saddle Clamp and Why Structural Form Rules Pipeline Longevity
An industrial pipe saddle clamp or gi u clamp is a structural dual-flange heavy-gauge support bracket engineered to securely ground heavy pipelines against structural bases or unistrut channels. Unlike low-gauge retail line hangers, an engineering-grade u shaped saddle features a precise internal curve that matches the exact outer diameter of standard schedule piping. This surface continuity distributes complex fluid pressure surges, thermal expansion strains, and seismic or wind vibrations safely across the structural support network. When an installation team runs continuous pipe loops, choosing under-specified, manually bent sheet metal straps introduces air gaps. These gaps cause the pipe to hammer within the bracket housing during sudden pump engagements, leading to joint leaks, paint delamination, and fast galvanic wear. Aero's progressive press cell constructs heavy duty gi pipe clamp selections with reinforced shoulders and clean hole punches to guarantee precise bolt alignments for high-stress projects.
B2B Custom Production Timeline
Aero Enterprises shop floor schedule Vasai
DFM Review & CAD
Drawings imported to CNC program, checking sheet gauge, bend allowance, and tonnage calculations.
Laser / Die Stamping
For prototype runs, blanking is completed on our 3000W fiber laser. High volumes move to progressive mechanical dies.
CNC Bending
Formed on press brakes (100T/3100mm) using calculated springback compensation per material batch.
7-Tank Powder Coat
Alkaline degreasing, hot phosphating, and UV-stable polyester top coat at 60-80 microns DFT.
Engineering Data Matrix
| Standard Size / OD Range | Nominal Bore Pipe OD coverage: 15mm (1/2 inch), 20mm (3/4 inch), 25mm (1 inch), 32mm (1.25 inch), 40mm (1.5 inch), 50mm (2 inch), 65mm (2.5 inch), 80mm (3 inch), 100mm (4 inch). Custom dimensions per engineering print. |
| base material | MS IS 2062 E250A / GI IS 277 120 GSM / SS 304 / SS 316 Grade Steel |
| thickness range | 1.5mm to 3.0mm structural plate gauge mapped to specific line load criteria |
| pipe od coverage | 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm, 100mm standard nominal bore dimensions |
| saddle arc tolerance | Strictly held within ±0.3mm of targeted nominal pipe outer diameter for seamless lock values |
| bolt hole sizing | Precision punched holes. M6 standard through 32mm OD; M8 for 40-65mm OD; M10 for heavy duty 80-100mm industrial applications. |
| forming method | Automatic power press blanking coupled with specialized high-tonnage multi-stage forming dies |
| surface finish options | In-house zinc electroplating (5-8 microns) or multi-stage 7-tank hot phosphate polyester powder coat curing |
| coating adhesion level | Class 5B cross-hatch adhesion tested to block field chipping risks during tight impact wrench fastening |
| rubber lining spec | Optional EPDM wrap insertion, 50 to 60 Shore A material durometer rating for up to 15 dB acoustic dampening values |
| moq | Minimum run 500 units per sizing profile |
| lead time | 5 to 7 business days for stock blueprint alignments from verified raw coil batches |
Class Thickness & Mass Reference
Procurement Guide: Aligning Material Grade with Environmental Risk Factors
Selecting material options for high-volume pipe installations requires analyzing regional moisture profiles. A standard MS IS 2062 powder-coated clamp represents the most efficient, value-optimized choice for climate-controlled factory spaces or dry warehouse cable trays, offering decade-long durability profiles. However, choosing un-galvanized mild steel for exposed solar frameworks or rooftop HVAC layouts across coastal regions like Mumbai represents a dangerous design flaw. UV exposure and seasonal monsoons crack industrial coatings along tight interior radiuses within 36 months, exposing the steel to rapid scaling. For these setups, GI IS 277 hot-dipped galvanized compositions are necessary to tap into sacrificial rust defense properties. When processing pipelines carry dangerous corrosive agents, chemical wash treatments, or high salinity streams, upgrading to SS 304 or molybdenum-fortified SS 316 elements is required to avoid system failures.
HSN & Commercial Billing Policy
Finished industrial hardware fittings, stamped support brackets, and pipe saddle u clamps constructed from sheet steel drop directly under the global HSN Code 7326 designation for fabricated iron or steel components. Business transactions process under the standard 18 percent GST rate tier. All official commercial documentation generated by our accounting desk features full validation profiles, including our registered state identification number (GSTIN 27AGCPK5633K1Z9) alongside HSN 7326 itemizations. Confirm with your internal procurement team to reconcile entries prior to dispatching your corporate purchase orders to Unit I.
Project Applications for Aero Stamped Pipe Saddle Clamps
Standard Grades Capability
MS IS 2062 E250A Structural Steel
The primary structural carbon steel block for indoor industrial piping layout grids. Finished using our automated 7-tank powder-coating system at 60 to 80 microns thickness to safeguard against localized humidity zones.
GI IS 277 120 GSM Galvanized Iron
The global B2B mandatory standard for outdoor solar arrays, rooftop HVAC line routing, and exposed infrastructure projects across coastal Maharashtra. The thick sacrificial zinc barrier stops base metal rust formation for 15 to 20 years without paint upkeep requirements.
SS 304 / SS 316 Stainless Steel
Specified for hygienic food processing lines, hospital cleanrooms, and heavy chemical fluid handling networks. SS 316 options are alloyed with 2 to 3 percent molybdenum to combat pitting corrosion from ambient saltwater exposure.
Vibration & Noise Isolation
For high-performance HVAC runs, overhead industrial fluid lines, and pump connection loops, Aero Enterprises supplies premium rubber-lined pipe clamp varieties. We integrate a commercial-grade vulcanized EPDM profile compound across the inner radius of our saddle clamps. Operating safely between -40°C and 120°C, this lining isolates acoustic line frequencies, stops galvanic reactions between conflicting pipe materials (such as raw stainless steel lines in contact with a zinc galvanized iron clamp), and cushions soft PVC or HDPE plastic pipes from friction cuts during intense thermal expansions.
Active Delivery & Logistics Coverage
Aero Enterprises delivers mill-certified fabricated items from Unit II Dhumal Nagar across active hubs in Maharashtra and pan-India.
