Car Spoiler Clamp Manufacturer Mumbai | Auto Accessory Bracket OEM – Aero Enterprises, Vasai

Unit I Vasai Phata manufactures premium stamped sheet metal components. Engineered with springback compensation, progressive die capabilities, and finished in our automated 7-tank powder-coating facility.

ISO 9001:2015 MSME Registered Pan-India Logistics
B2B Quick ConsoleMade to Order – 7–10 Days Lead Time
Standard Size RangeCustom multi-bend profiles and spoiler clamp sets tailored to specific vehicle contours. Stamped and punched to client CAD or sample specifications.
HSN Code7326 (Stamping / Fabricated Parts)
Avg. B2B Pricing₹31 / piece

Component USP Summary

Vibration-resistant car spoiler clamps stamped and CNC bent in Vasai. 1.2–3.0mm MS/GI with ±0.5° angular precision for universal and vehicle-specific rattle-free fitment, sealed with a 7-tank powder coating.

OEM Stamped Part

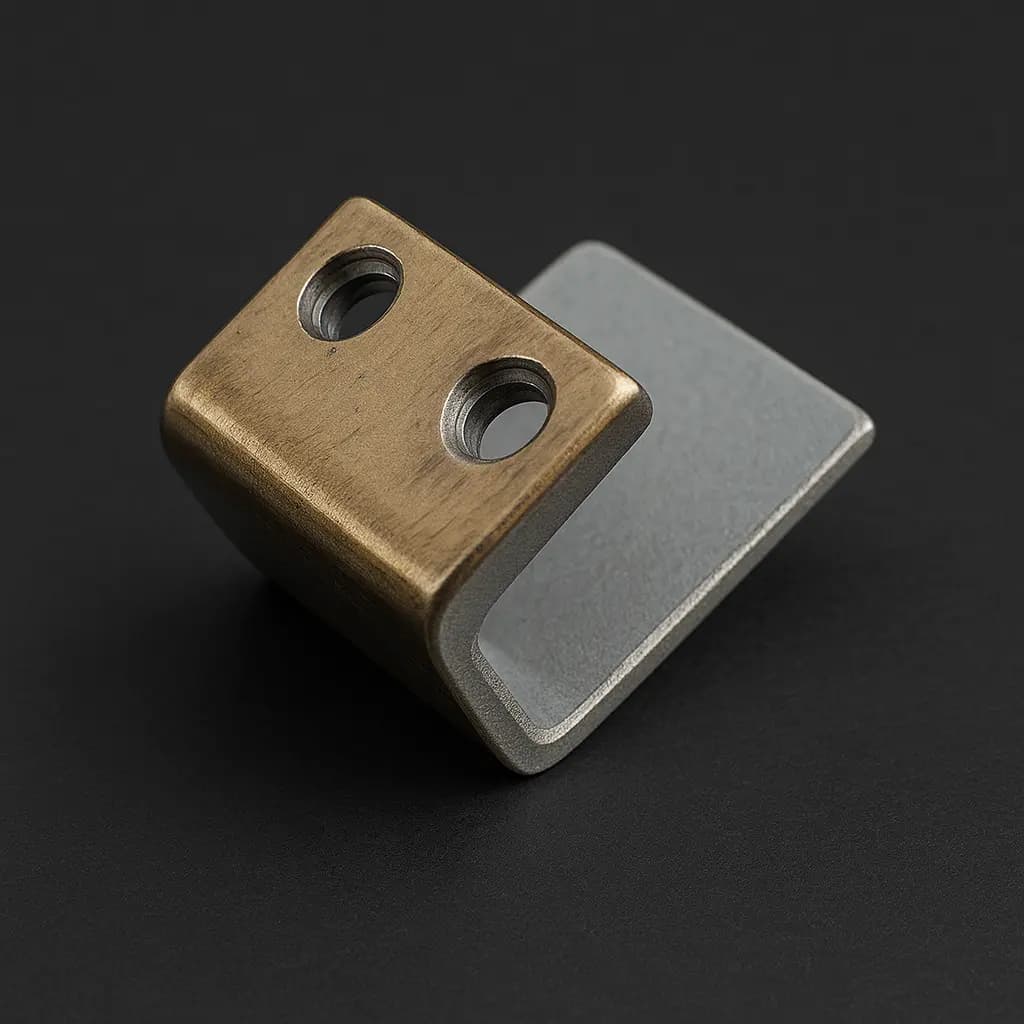

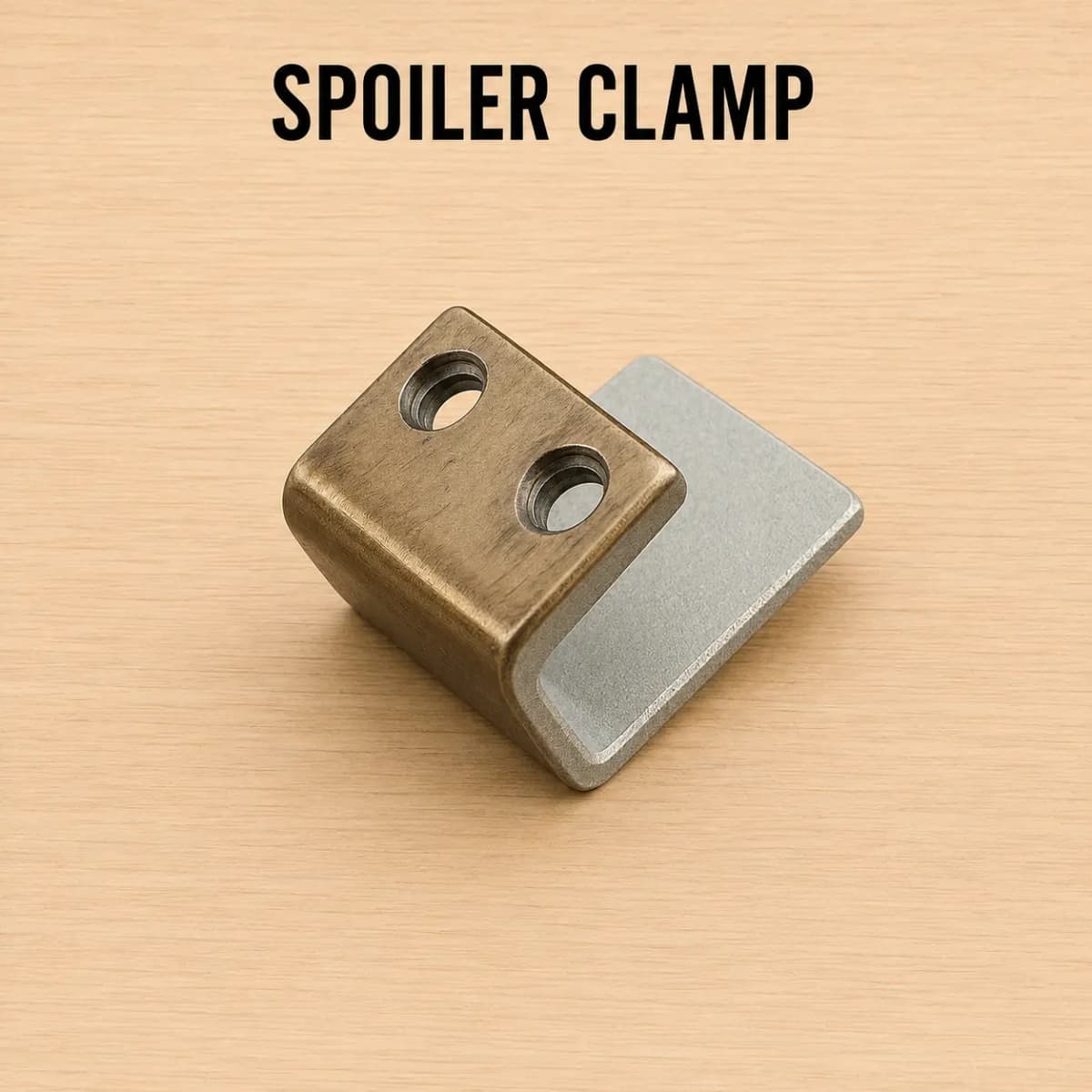

Spoiler Clamp – Sheet Metal Auto Accessory Bracket

What Is a Sheet Metal Car Spoiler Clamp

A car spoiler clamp is a precision-fabricated sheet metal bracket used to securely mount aerodynamic rear spoilers, roof wings, and exterior accessories to a vehicle's body panels without requiring destructive drilling into the car's exterior shell. Unlike decorative plastic trim, spoiler mounting brackets are structural load-bearing components that must resist continuous aerodynamic drag at highway speeds, high-frequency chassis vibration, and sudden pothole impacts. A universal car spoiler clamp typically features a hooked or U-channel geometry to grip the vehicle's panel edges and integrated mounting holes for fastening the spoiler body. Aero manufactures these critical mounting hardware sets for auto accessory distributors and aftermarket brands across India.

B2B Custom Production Timeline

Aero Enterprises shop floor schedule Vasai

Unit I Production Floor
01

DFM Review & CAD

Drawings imported to CNC program, checking sheet gauge, bend allowance, and tonnage calculations.

02

Laser / Die Stamping

For prototype runs, blanking is completed on our 3000W fiber laser. High volumes move to progressive mechanical dies.

03

CNC Bending

Formed on press brakes (100T/3100mm) using calculated springback compensation per material batch.

04

7-Tank Powder Coat

Alkaline degreasing, hot phosphating, and UV-stable polyester top coat at 60-80 microns DFT.

Engineering Data Matrix

Standard Size / OD RangeCustom multi-bend profiles and spoiler clamp sets tailored to specific vehicle contours. Stamped and punched to client CAD or sample specifications.
base materialMS IS 2062 E250A or GI IS 277
thickness range1.2mm – 3.0mm (Vehicle dependent)
angular tolerance±0.5° via CNC Press Brake for exact vehicle contour match
hole tolerance±0.1mm centre-to-centre for precise accessory alignment
edge conditionVibratory deburred to prevent damage to vehicle paint during installation
surface finishElectrostatic powder coat over 7-tank zinc phosphate pretreatment
coating dft60–80 microns flat coverage
adhesion standardClass 5B cross-hatch adhesion to resist high-pressure car washes and gravel strikes
standard coloursSatin Black RAL 9005, Matte Black, or OEM-matched primary colours
hsn code73269099
lead time7–10 working days for standard repeat batches. 12–15 days for new tooling.

Class Thickness & Mass Reference

Class / Thickness1.2mm GI (Hatchback Class)
Est. Weight0.060–0.085 kg (0.13–0.18 lbs)
Class / Thickness1.6mm MS (MPV / Van Class)
Est. Weight0.090–0.130 kg (0.20–0.28 lbs)
Class / Thickness2.0mm MS (Compact SUV Class)
Est. Weight0.140–0.170 kg (0.30–0.37 lbs)
Class / Thickness2.5mm MS (Heavy MUV/SUV Class)
Est. Weight0.180–0.240 kg (0.39–0.52 lbs)
Class / Thickness2.0mm MS (Universal Adjustable)
Est. Weight0.150–0.190 kg (0.33–0.41 lbs)

Material Selection Guide: MS vs GI for Automotive Spoiler Clamps

Selecting the correct raw material is a critical design decision for automotive spoiler clamps. Mild Steel (MS IS 2062 Grade A) is preferred for heavy SUV and MUV brackets (like Bolero or Scorpio spoiler clamps) due to its high tensile strength (up to 410 MPa), which resists aerodynamic lift forces at high speeds. Since MS is prone to rust, it must receive our multi-stage 7-tank powder coating finish. For hatchbacks (like Swift or Alto clamps) where weight and thickness are lower, Galvanized Iron (GI IS 277) is the superior choice for coastal zones like Mumbai. The zinc coating provides sacrificial rust protection, ensuring durability even under heavy road spray and high humidity without paint delamination risk.

HSN & Commercial Billing Policy

Fabricated sheet metal automotive clamps and rear spoiler mounting brackets are classified under HSN Code 73269099. Pricing in the Indian aftermarket ranges from ₹18.00 per unit for high-volume 1.2mm hatchback clamps (like an Eeco spoiler clamp or Polo spoiler clamp) to ₹45.00+ per unit for heavy-gauge (2.5mm+) multi-bend SUV sets. GST applies at 18%. Aero provides transparent per-piece OEM pricing based on sheet gauge, batch volume, and powder coat specification.

Applications for Auto Accessory Spoiler Mounting Brackets

SUV and MUV rear spoiler mounting (Bolero spoiler clamps, Scorpio, Innova aftermarket kits)
Hatchback roof wing brackets (Swift spoiler clamps, Alto, Polo, i20 accessory fitments)
MPV and Van spoiler clamp sets (Ertiga and Eeco rear spoiler installations)
Universal car spoiler clamps for custom aftermarket body kits and multi-vehicle compatibility
Roof rail foundation clamps and cross-bar mounting hardware
Fender mirror mounting brackets and heavy-duty auxiliary light clamps
Custom luggage carrier grip clamps for gutterless vehicle roofs
Off-road bumper light pod mountings and utility vehicle auxiliary brackets
Aftermarket roof spoiler mounting hardware sets for performance hatchbacks
OEM spoiler mounting bracket integration programs for tier-1 auto suppliers

Standard Grades Capability

MS IS 2062 E250A – Heavy-Duty Structural Mild Steel

The standard specification for heavy MUV and SUV brackets, including the Bolero spoiler clamp and Scorpio spoiler clamp. Used at 2.0mm to 3.0mm thicknesses. MS provides excellent tensile strength to resist aerodynamic lift forces. Because MS is susceptible to rust, Aero's strict 7-tank zinc phosphate pretreatment and Class 5B powder coating is mandatory to seal the metal prior to dispatch.

GI IS 277 – Galvanized Iron for Coastal Climates

Specified for premium aftermarket hardware and universal car spoiler clamps sold into coastal markets (like Mumbai) where salt air accelerates automotive rust. Used typically at 1.2mm to 2.0mm for hatchback applications like the Alto spoiler clamp and Swift spoiler clamp. GI requires specific stamping die clearances to prevent flaking the zinc layer during the press stroke.

Active Delivery & Logistics Coverage

Aero Enterprises delivers mill-certified fabricated items from Unit II Dhumal Nagar across active hubs in Maharashtra and pan-India.

Get Delivery Schedule & Quotes

Related OEM Components

Horizontal Production Capabilities

Flood Light Cradle and Mounting Bracket (Sheet Metal)

FLOOD LIGHT CRADLE / MOUNTING BRACKET

OEM-grade LED light mounting brackets stamped, CNC bent (±0.5°), and powder coated at Unit I Vasai. Springback-compensated U-form. UV-stable outdoor powder coat.

L Patti Corner Bracket - Heavy Duty L Bracket Hardware

L PATTI CORNER BRACKET / HEAVY DUTY L BRACKET

Heavy duty l bracket steel with ±0.1mm hole tolerance, true 90 degree CNC bend accuracy, and zinc or 7-tank powder coat. Bulk OEM supply packaged in 25kg gunny bags.

Saddle U Clamp - Stamped Sheet Metal Pipe Saddle Support Clamp

SADDLE CLAMP / PIPE SADDLE CLAMP / HEAVY DUTY GI PIPE CLAMP / U CLAMP FOR PIPE

Springback-compensated stamping dies deliver true circumferential arc alignment within ±0.3mm of nominal pipe outer diameter. Complete wall contact prevents flange failure under heavy wind or dynamic fluid loads.

Wall Unit Document Holder Bracket - Sheet Metal Fabricated

WALL UNIT DOCUMENT HOLDER BRACKET / SOP HOLDER / WALL MOUNT FILE FOLDER FRAME

Sheet metal wall unit document holder brackets with ±0.2mm A4/A5 slot tolerance, fully deburred internal edges, and 7-tank powder coat finish. OEM batch manufacturer in Vasai for stationery hardware and factory SOP display assemblers.

Wood Insert D Nut – Threaded Insert for Wood (Tee Nut / T-Nut)

WOOD INSERT D NUT / THREADED INSERT FOR WOOD / TEE NUT (T-NUT)

Thread-rolled (not tapped) ISO 6H internal threads, Go/No-Go gauge verified per batch, progressive die stamped from CR IS 513 CQ, zinc-plated in-house M4 to M12, MOQ 1,000 pieces, direct from manufacturer Unit I Vasai Phata.

Material Strength & Engineering Tolerances

base material
MS IS 2062 / GI IS 277
product names
Car spoiler clamp, Bolero spoiler clamp, Swift spoiler clamp, universal car spoiler clamp, spoiler clamp set
thickness range mm
1.2 – 3.0
angular precision
±0.5° (CNC Bent)
edge condition
Vibratory deburred (paint safe)
surface finish
7-tank electrostatic powder coat
coating dft
60–80 microns
adhesion
Class 5B cross-hatch
hsn code
73269099
pricing range
₹18.00 – ₹45.00 / Unit
lead time
7–10 days standard
Engineering Resource

Technical Procurement: precision sheet metal fabrication aero enterprises

Master the procurement variables for Spoiler Clamp – Sheet Metal Auto Accessory Bracket. Review our engineering team's deep dive into fabrication aero enterprises.

Read Technical Guide

Technical Q&A

Verified Procurement Intelligence

What is the correct sheet metal thickness for a rear spoiler clamp?
Thickness depends on the aerodynamic load of the vehicle. For hatchbacks (e.g., an Alto or Swift spoiler clamp) where the spoiler is smaller and drag is lower, 1.2mm to 1.6mm GI or MS is standard. For larger SUVs and MUVs (e.g., Bolero, Scorpio) that feature heavy, wide spoilers subjected to high wind resistance, a heavy-duty 2.0mm to 3.0mm MS IS 2062 bracket is mandatory to prevent the metal from tearing at the mounting points.
What is the Bolero spoiler clamp price for wholesale orders?
The Bolero spoiler clamp price typically ranges from ₹35.00 to ₹45.00+ per unit depending on the exact material gauge (usually 2.5mm MS IS 2062), the complexity of the progressive tooling required, and the current raw steel index at our Unit II stockyard. Prices are subject to 18% GST (HSN 73269099). We provide volume-tiered OEM pricing for batches starting at 1,000 pieces.
How to install a universal car spoiler clamp without damaging the vehicle?
To install a universal car spoiler clamp properly, the bracket must feature exact CNC-bent angles that match the contour of the hatch or roofline. Aero guarantees a ±0.5° angular tolerance. This allows the mechanic to hook the clamp type spoiler bracket onto the panel edge as a 'drop-in' fit without using pliers to force the metal. Forced fitment damages the vehicle's paint and introduces tension that causes the clamp to vibrate loose.
Are aftermarket car spoilers and spoiler clamps legal in India?
Under Indian motor vehicle regulations, structural modifications that alter the vehicle's core chassis or dramatically change its factory dimensions are restricted. However, bolt-on cosmetic accessories like roof wings mounted with non-destructive, clamp type spoilers are generally permissible for aftermarket use provided they do not protrude dangerously beyond the vehicle's width. Aero Enterprises manufactures only the internal structural mounting brackets, supplying them to auto accessory brands who ensure final compliance of the plastic outer shell.
Should I specify GI (Galvanized Iron) or MS (Mild Steel) for my aftermarket clamps?
If your primary distribution market is coastal (Mumbai, Chennai) or regions with heavy road moisture, GI IS 277 is superior because the zinc layer acts as a sacrificial barrier against rust. This is common for smaller vehicle brackets like an Eeco or Polo spoiler clamp. However, if your clamp requires heavy stamping or thickness above 2.0mm (like an Innova spoiler clamp), MS IS 2062 is structurally required. Aero advises the correct grade during the DFM review.
Are the edges of your spoiler mounting brackets sharp enough to damage vehicle paint?
No. Paint damage during installation is a massive complaint regarding cheap aftermarket hardware. Burrs left over from the power press shearing action can easily scratch a vehicle's clear coat during fitment, leading to rust on the vehicle body itself. Every batch of car spoiler clamps manufactured at Aero Enterprises undergoes vibratory deburring before powder coating to round off sharp edges.
Can you manufacture a spoiler clamp set for a newly launched vehicle model?
Yes. If you are developing an accessory kit for a new car or require a custom universal car spoiler clamp, provide us with the CAD drawing or a physical sample bracket. Our in-house tooling team will design the progressive or compound dies required for the power press floor. Tooling development takes 10 to 15 days, after which we push the clamps into full volume production.
How does Aero guarantee quality on high-volume auto spoiler clamp orders?
At Aero Unit I, we strictly execute our quality control protocol under ISO 9001:2015. Every automotive hardware batch goes through automatic progressive stamping checks, CNC angular verification to within ±0.5°, vibratory paint-safe deburring, and complete 7-tank hot-phosphated polyester powder coat application. The finished clamps are subjected to Class 5B cross-hatch adhesion and road-salt spray resistance tests to guarantee extreme B2B service life.

Related Metal Specifications

CNC Bending & Stamping FloorAutomotive Hardware SectorsFabricated Products CatalogWood Insert D Nuts

Get an OEM Quote for Car Spoiler Clamps

Share your vehicle application (e.g., Swift, Bolero, Scorpio, Universal), clamp CAD drawing or sample, material preference (MS or GI), and batch quantity. We provide a complete manufacturing quote within 24 hours, including tooling costs and per-piece rates. Protect your aftermarket auto accessory brand with vibration-resistant, CNC-bent hardware.

Request Direct RFQAll Inventory

Mill Test Certificates (MTC) Available Upon Request
